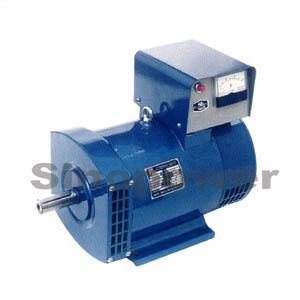

  Item# ST SERIES





    TECHNICAL DATA

Model

Output
(kW)

Current (A)

Voltage (V)

Power factor
(cosf)

Pole
number

Speed
(r.p.m)

Freq.

(Hz)

Series Connection

Parallel Connection

Series Connection

Parallel Connection

ST-1

1

4.35

8.7

230

115

1.0

4

1500/1800

50/60

ST-2

2

8.7

17.4

230

115

1.0

4

1500/1800

50/60

ST-3

3

13

26

230

115

1.0

4

1500/1800

50/60

ST-5

5

21.8

43.5

230

115

1.0

4

1500/1800

50/60

ST-7.5

7.5

32.6

65.2

230

115

1.0

4

1500/1800

50/60

ST-10

10

43.5

87

230

115

1.0

4

1500/1800

50/60

ST-12

12

52.2

104

230

115

1.0

4

1500/1800

50/60

ST-15

15

65.3

130

230

115

1.0

4

1500/1800

50/60

ST-20

20

87

174

230

115

1.0

4

1500/1800

50/60

ST-24

24

104

208

230

115

1.0

4

1500/1800

50/60

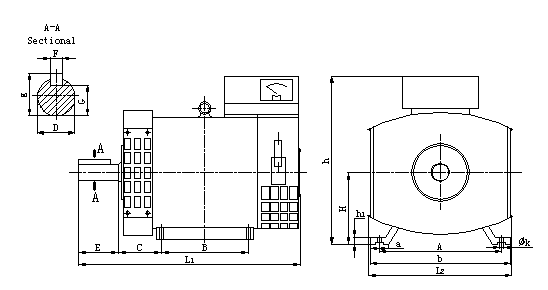

 OVERALL AND MOUNTING DIMENSION

Type

Output
(KW)

Installing dimensions(mm)

External dimensions(mm)

Weight
(kg)

A

B

C

D

E

F

G

H

K

a

b

h1

h

L1

L2

g

ST-1kW

1

216

178

89

Ø32

80

10

27

132

12

34

250

18

385

480

270

34.8

60

ST-2kW

2

216

178

89

Ø32

80

10

27

132

12

34

250

18

385

480

270

34.8

65

ST-3kW

3

216

178

89

Ø32

80

10

27

132

12

34

250

18

385

480

270

34.8

70

ST-5kW

5

254

254

108

Ø38

80

10

33

160

15

50

310

25

440

580

325

40.8

120

ST-7.5kW

7.5

254

254

108

Ø38

80

10

33

160

15

50

310

25

440

580

325

40.8

130

ST-10kW

10

279

203

121

Ø42

110

12

37

180

15

60

339

25

480

610

365

44.8

140

ST-12kW

12

279

203

121

Ø42

110

12

37

180

15

60

339

25

480

610

365

44.8

155

ST-15kW

15

318

228

133

Ø48

110

14

42.5

200

19

60

378

30

540

660

400

51.2

192

ST-20kW

20

318

228

133

Ø48

110

14

42.5

200

19

60

378

30

540

660

400

51.2

202

ST-24kW

24

318

228

133

Ø48

110

14

42.5

200

19

60

378

30

540

660

400

51.2

227
