  Home >  Product  >>  Diesel Generator >>

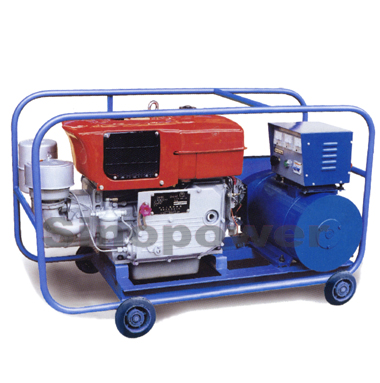

  Item# GF (3-10KW)SERIES



GF series diesel generating sets are adopted the up-to-date technique of A.C. synchronous generator excitation system and the high quality diesel engines, The generator can be used for factory, countryside, high buildings, railway, construction area etc. The main technical data of GF series, diesel generating sets all meet the national standard of GB 2820-90 General Technical specification For Industrial Diesel Generating Sets.

TECHNICAL DATA



DIESEL
ENGINE

SETS MODEL

GF-3KW

GF-5KW

GF-8KW

GF-10KW

GF-12KW

MODEL

S175

S195

S1100

S1105

S1110

STARTING SYSTEM

MANUAL/ELECTRIC START

FUEL CONSUMPTION ( g/kw.h)

270

250

250

250

250

TYPE

HORIZONTAL, SINGLE-CYLINDER, FOUR-STROKE, WATER-COOLED

COOLING TYPE

CLOSED CIRCULATING COOLING (CONDENSOR)

RATED SPEED

1500/1800

ALTERN-

ATOR

MODEL

STC-3(ST-3)

STC-5(ST-5)

STC-8(ST-8)

STC-10(ST-10)

STC-12(ST-12)

RATED FREQ. (Hz)

50/60

ATED VOLTAGE(V)

400/230

ATED CURRENT(A)

5.4(13/25)

9(21.7/43.5)

14.4(32.6/65.2)

18(43.5/87)

21.6(52.2/104.3)

ATED OUTPUT(kW)

3

5

8

10

12

POWER FACTOR

0.8LAG(1.0)

TYPE

TRIPLE HARMONIC, 3PHASE(SINGLE-PHASE)

GEN-SETS

DIMENSIONS( mm)

1050x500x720

1320x650x860

1320x650X860

1320x650x860

1320x650x860

NET WEIGHT (kg)

170

320

350

360

380
