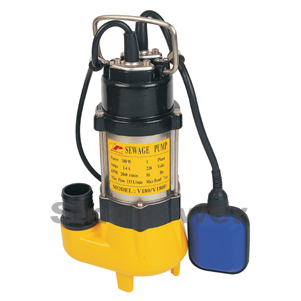

  Item# V180/V180F V250/V250F


Condition of usage:

1.The maximum deep it is allowed in water is 5m from its center of impeller;
2.The trans medium´s temperature shouldn´t be higher than 40

3.The trans medium´s PH scope is from 4
10
4.The kinematics viscosity of the trans medium is from 7×10-7
23×10-7/s
5.The maximum density of the trans medium is 1.2×10³kg/m³

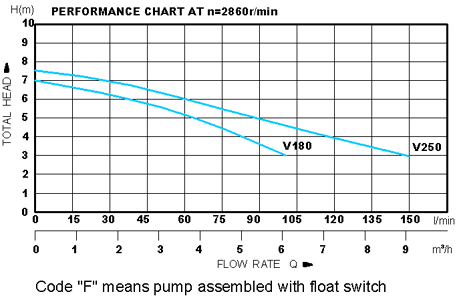

TECHNICAL DATA



Model

Power

(KW)

Discharge (mm)

Vol.Freq.
(V/Hz)

Max .flow
(m3/h)

Max.Head(m)

Weight

(kg)

Paciking
(cm)

V180/
 V180F

0.18

40

220/50

6.0

7.0

8.5

18.5×18.0×36.5

V250/
 V250F

0.25

40

9.0

7.5

9.5

18.5×18.0×38.5
