Condition of usage:
1.The maximum deep it is allowed in water is 5m from its center of impeller;
2.The trans medium´s temperature shouldn´t be higher than 40℃
3.The trans medium´s PH scope is from 4～10；
4.The kinematics viscosity of the trans medium is from 7×10-7～23×10-7m²/s
5.The maximum density of the trans medium is 1.2×10³kg/m³

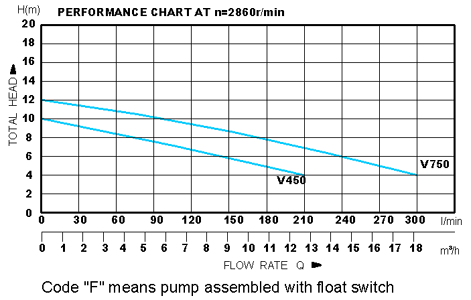

TECHNICAL DATA
|
Model |
Power
(KW) |
Discharge (mm) |
Vol.Freq.
(V/Hz) |
Max .flow
(m3/h) |
Max.Head(m) |
Weight
(kg) |
Paciking
(cm) |
|
V450/
V450F |
0.45 |
50 |
220/50 |
12.5 |
10 |
18.5 |
26.0×19.5×50.0 |
|
V750/
V750F |
0.75 |
50 |
18 |
12 |
19.5 |
26.0×19.5×54.0 |
|
