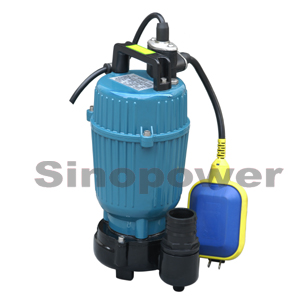

  Item# V250A/ V250AF


Condition of usage:

1.The maximum deep it is allowed in water is 5m from its center of impeller;
2.The trans medium´s temperature shouldn´t be higher than 40

3.The trans medium´s PH scope is from 4
10
4.The kinematics viscosity of the trans medium is from 7×10-7
23×10-7/s
5.The maximum density of the trans medium is 1.2×10³kg/m³









TECHNICAL DATA

Model

Power

(KW)

Discharge (mm)

Vol.Freq.(V/Hz)

Max .flow
(m3/h)

Max.Head(m)

Weight

(kg)

Paciking
(cm)

V250A/ V250AF

0.25

40

220/50

9.6

9.5

9.5

33.0×21.0×18.5
