Condition of usage:
1.The depth for the electrical pump below the water is no more than 5m;
2.The temperature of the water is no higher of 40ºC;
3.The PH figure of the water is between 6.5¡«8.5
4.The grain diameter of the solids in the water is no bigger than 0.2mm

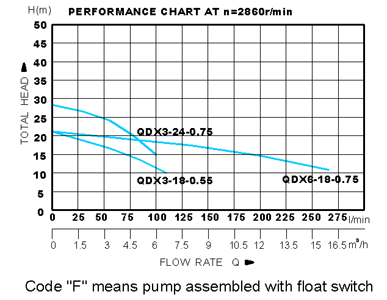

TECHNICAL DATA
|
Model |
Power
(KW) |
Discharge (mm) |
Vol.Freq.(V/Hz) |
Max .flow
(m3/h) |
Max.Head(m) |
Weight
(kg) |
Paciking
(cm) |
|
QDX3-18-0.55/ QDX3-18-0.55F/ |
0.55 |
40 |
220/50 |
6.5 |
21.0 |
12.3 |
40.5¡Á26.0¡Á22.5 |
|
QDX6-18-0.75/
QDX6-18-0.75F |
0.75 |
40 |
16.0 |
21.0 |
16.0 |
44.5¡Á28.0¡Á24.0 |
|
QDX3-24-0.75/
QDX3-24-0.75F |
0.75 |
32 |
6.0 |
28.0 |
16.0 |
44.5¡Á28.0¡Á24.0 |
|
