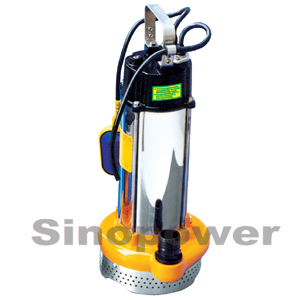

  Item# QDX10-18-1.1/1.1F


Condition of usage:

1.The depth for the electrical pump below the water is no more than 5m;
2.The temperature of the water is no higher of 40ºC;
3.The PH figure of the water is between 6.5¡«8.5
4.The grain diameter of the solids in the water is no bigger than 0.2mm

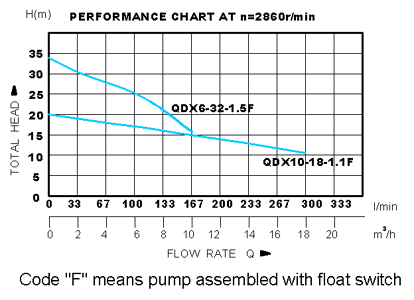

TECHNICAL DATA

Model

Power

(KW)

Discharge (mm)

Vol.Freq.(V/Hz)

Max .flow
(m3/h)

Max.Head(m)

Weight

(kg)

Paciking
(cm)

QDX10-18-1.1/ QDX10-18-1.1F

1.1

40

220/50

18.0

20.0

21.0

27.5¡Á22.5¡Á50.0

QDX6-32-1.5/

QDX6-32-1.5F

1.5

40

10.0

34.0

24.0

27.5¡Á22.5¡Á56.0
