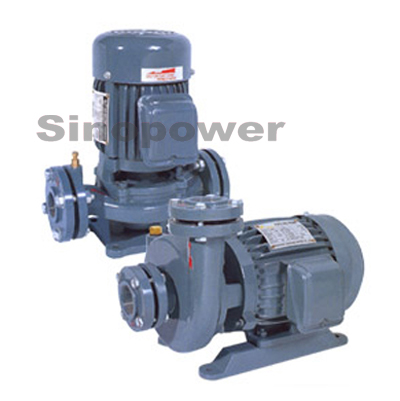

INTRODUCE
1.This kind of pump adopt the specialized motor which is specially designed this pump with advanced international motor design standard, it possesses small measurement, light weight, and willnot obtain too much space, it could be mounted on the any position of the pipe.
2. This kind of pump adopt the impeller which is designed specially and with patent right, the pump will reduce the consumption of the power, Basing on equipped with the same output motor and same caliber of pump, this king of pump will possesses higher head, greater flow quantity while the load current is less.
3. Shaft seal adopt the type which is made of imported raw material and will have longer life and is not easy to be leak.
4. The motor is totally enclosed, so it could be used on the place without any rain keeping off equipment. The shaft of the motor will not easily rust as it has been dealed with 45# steel.
5. Please don''t make the pump race rotation or back turn. For fist time operating, please exhaust the air from the exhaist steam nozzle,after having exhausted all the air, the pump could be operated for long period. |
|
PERFORMANCE SPECIFICATIONS |
|
Type |
XWM-32 |
XWM-40 |
XWM-50 |
XWM-65 |
XWM-80 |
|
Output(KW/HP) |
0.37/0.5 |
0.75/1 |
1.5/2 |
2.25/3 |
3.75/5 |
|
Head(m) |
20 |
22 |
24 |
24 |
34 |
|
Flow Quantity(L/min) |
110 |
250 |
310 |
500 |
790 |
|
Speed(r/min) |
2850 |
2850 |
2850 |
2850 |
2850 |
|
Refrigeration |
Max |
5 |
15 |
25 |
40 |
60 |
|
(Ton) |
Min |
10 |
20 |
30 |
50 |
80 |
|
Water outlet diameter (mm/Inch) |
32/1.25 |
40/1.5 |
50/2 |
65/2.5 |
80/3 |
|
Current(A)
Y/△(5hp and over) with 380V |
0.89 |
2 |
3 |
5 |
8 |
|
|
|
|
PERFORMANCE SPECIFICATIONS |
|
Type |
XW-32 |
XW-40 |
XW-50 |
XW-65 |
XW-80 |
XW-100-7.5 |
XW-100-10 |
|
Output(KW/HP) |
0.37/0.5 |
0.75/1 |
1.5/2 |
2.25/3 |
3.75/5 |
5.5/7.5 |
7.5 |
|
Head(m) |
12 |
15.5 |
18.5 |
20.5 |
23 |
25 |
27 |
|
Flow Quantity(L/min) |
120 |
210 |
295 |
475 |
800 |
1100 |
1450 |
|
Speed(r/min) |
2850 |
2850 |
2850 |
2850 |
2850 |
2850 |
2850 |
|
Refrigeration |
Max |
5 |
15 |
25 |
40 |
60 |
80 |
100 |
|
(Ton) |
Min |
10 |
20 |
30 |
50 |
80 |
100 |
125 |
|
Water outlet diameter (mm/Inch) |
32/1.25 |
40/1.5 |
50/2 |
65/2.5 |
80/3 |
100/4 |
100/4 |
|
Current(A)
Y/△(5hp and over) with 380V |
0.89 |
2 |
3 |
5 |
8 |
11.1 |
15 |
|
|
