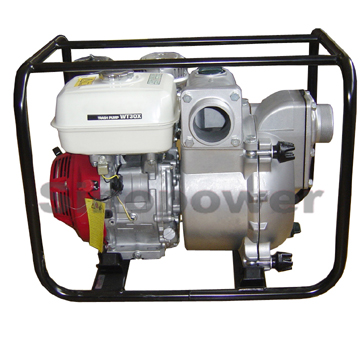

WT30X
C
D
UD
AC
DE
Engine
Model
173F
Type
Forced air-cooled 4-stroke OHV single
Displacement
242 cm³
Max.Power Output
8.0PS(5.9KW)/3600rpm
Continuous Operating Hours
2.3hr
Fuel.Tank Capacity
6.0 liters
Pump
Inlet/Outlet Diameter
80 mm(3inch)
Total Head Lift
27 m (89ft.)
Suction Head Lift
8 m(26ft.)
Max.Pumping Capacity
1.210 L/min.(328 gal/min.)
Self-Priming Time
90 seconds <4.5m(15ft.)>
Suction Port Screw
NTPF
PF
Unit
660x495x515
Dry Weight
60 kg (129 lbs.)
