Model

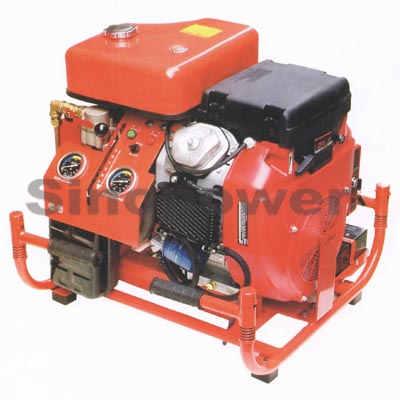

HP-250FD

PUMP

At Rated Pressure

≥540L/min /0.6Mpa

Outlet/Inlet dia. (MM)

65/80

Max.Capacity (L/min)

≥750

Total Head (M)

63

Priming Time

≤30S

Suction Head Max

6M

ENGINE

Model

2V77F

Type

V Type, Two Cylinders,4 stroke , air-cooled, OHV

Bore*Stroke(MM)

77*66

Displacement(ML)

614

Speed   (rpm)

3600

Maximum output (HP)

20HP(15KW)/3600rpm

Continuous output (HP)

16HP(12kw)/3600rpm

Starting system

Electric

NET Weight (kg)

42KG

UNIT

Dimensions(mm)

650X610X650

Dry Weight(kg)

95
