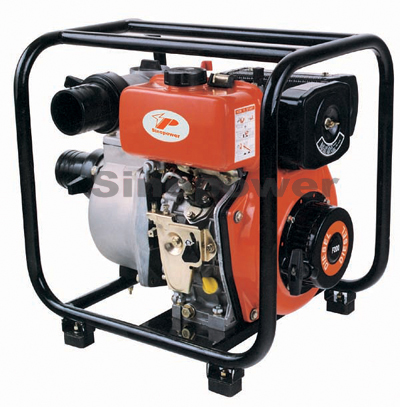

C  Type

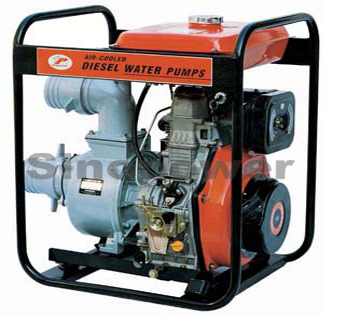

                CL Type

Standard Specification

Model		DEP50C	DEP50CL	DEP80C	DEP80CL	DEP100C	DEP100CL
Pump	Outlet/Inlet dia. mm(in)	50 (2'')	50 (2'')	80 (3'')	80 (3'')	100 (4'')	100 (4'')
	Max. total head (m)	21	21	23	23	26	26
	Suction lift (m)	8	8	8	8	8	8
	Max. capacity (L/min)	700	700	1000	1000	1800	1800
Engine	Model	F210DW	F210DW	F300DW	F300DW	F400DW	F400DW
	Displacement (cc)	211	211	296	296	406	406
	Max. output (hp/rpm)	4.2/3000	4.2/3000	6.1/3000	6.1/3000	8.8/3000	8.8/3000
	Cont. output (hp/rpm)	3.8/3000	3.8/3000	5.5/3000	5.5/3000	7.7/3000	7.7/3000
	Fuel tank capacity (L)	2.5	12.5	3.5	12.5	5.5	12.5
Set	Dimensions L x W x H (mm)	510 x 395 x 500	510 x 455 x 620	540x440 x 530	540 x 455 x 650	650 x 500 x 630	650 x 500 x 740
	Dry weight (kg)	35	40	52	57	75	80
