Under the following environment, the generator could run ontinuously:
1. Altitude: not exceed 1000m.
2. Ambient temperature: -15¡æ~40¡æ.
3. Relative air humidity: not exceed 90%.
TECHNICAL DATA
| Type |
Output
(KW) |
Output
(KVA) |
Voltage
(V) |
Current
(A) |
Power factor
(Cos¦Õ) |
Pole
number |
Speed
(r.p.m) |
Ferq.
(Hz) |
| STC-3 |
3 |
3.8 |
400/230 |
5.4 |
0.8 |
4 |
1500/1800 |
50/60 |
| STC-5 |
5 |
6.3 |
400/230 |
9.1 |
0.8 |
4 |
1500/1800 |
50/60 |
| STC-7.5 |
7.5 |
9.4 |
400/230 |
13.5 |
0.8 |
4 |
1500/1800 |
50/60 |
| STC-8 |
8 |
10 |
400/230; |
14.4 |
0.8 |
4 |
1500/1800 |
50/60 |
| STC-10 |
10 |
12.5 |
400/230 |
18.1 |
0.8 |
4 |
1500/1800 |
50/60 |
| STC-12 |
12 |
15 |
400/230 |
21.7 |
0.8 |
4 |
1500/1800 |
50/60 |
| STC-15 |
15 |
18.5 |
400/230 |
27.1 |
0.8 |
4 |
1500/1800 |
50/60 |
| STC-20 |
20 |
25 |
400/230 |
36.1 |
0.8 |
4 |
1500/1800 |
50/60 |
| STC-24 |
24 |
30 |
400/230 |
43.3 |
0.8 |
4 |
1500/1800 |
50/60 |
| STC-30 |
30 |
37.5 |
400/230 |
54.1 |
0.8 |
4 |
1500/1800 |
50/60 |
| STC-40 |
40 |
50 |
400/230 |
72.2 |
0.8 |
4 |
1500/1800 |
50/60 |
| STC-50 |
50 |
62.5 |
400/230 |
90.2 |
0.8 |
4 |
1500/1800 |
50/60 |

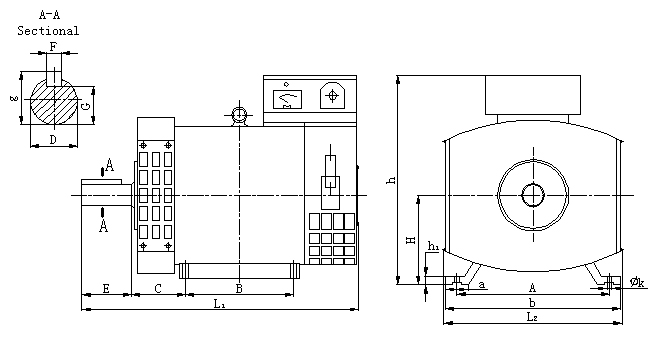

OVERALL AND MOUNTING DIMENSION
| Type |
Output |
Installing dimensions(mm) |
External dimensions(mm) |
Weight
(kg) |
|
KW |
KVA |
A |
B |
C |
D |
E |
F |
G |
H |
K |
a |
b |
h1 |
h |
L1 |
L2 |
g |
| STC-3 |
3 |
3.8 |
216 |
178 |
89 |
Ø32 |
80 |
10 |
27 |
132 |
13 |
34 |
250 |
18 |
400 |
480 |
270 |
34.8 |
70 |
| STC-5 |
5 |
6.3 |
254 |
254 |
108 |
Ø38 |
80 |
12 |
33 |
160 |
16 |
50 |
310 |
25 |
450 |
580 |
325 |
40.8 |
120 |
| STC-7.5 |
7.5 |
9.4 |
254 |
254 |
108 |
Ø38 |
80 |
12 |
33 |
160 |
16 |
50 |
310 |
25 |
580 |
580 |
325 |
40.8 |
130 |
| STC-8 |
8 |
10 |
254 |
254 |
108 |
Ø38 |
80 |
12 |
33 |
160 |
16 |
50 |
339 |
25 |
580 |
580 |
325 |
4038 |
135 |
| STC-10 |
10 |
12.5 |
279 |
203 |
121 |
Ø42 |
110 |
12 |
37 |
180 |
16 |
60 |
339 |
25 |
590 |
610 |
365 |
44.8 |
140 |
| STC-12 |
12 |
15 |
279 |
203 |
121 |
Ø42 |
110 |
12 |
37 |
180 |
16 |
60 |
378 |
25 |
490 |
610 |
365 |
44.8 |
155 |
| STC-15 |
15 |
18.8 |
318 |
228 |
133 |
Ø48 |
110 |
14 |
45 |
200 |
20 |
60 |
378 |
30 |
500 |
660 |
400 |
51.5 |
192 |
| STC-20 |
20 |
25 |
318 |
228 |
133 |
Ø48 |
110 |
14 |
45 |
200 |
20 |
60 |
378 |
30 |
500 |
660 |
400 |
51.5 |
202 |
| STC-24 |
24 |
30 |
318 |
228 |
133 |
Ø48 |
110 |
14 |
45 |
200 |
20 |
60 |
378 |
30 |
500 |
660 |
400 |
51.5 |
227 |
| STC-30 |
30 |
37.5 |
356 |
286 |
149 |
Ø60 |
140 |
18 |
53 |
225 |
20 |
65 |
421 |
32 |
650 |
770 |
452 |
64 |
257 |
| STC-40 |
40 |
50 |
356 |
286 |
149 |
Ø60 |
140 |
18 |
53 |
225 |
20 |
65 |
421 |
32 |
650 |
770 |
452 |
64 |
290 |
| STC-50 |
50 |
62.5 |
356 |
311 |
149 |
Ø60 |
140 |
18 |
53 |
225 |
20 |
65 |
421 |
32 |
650 |
810 |
452 |
64 |
344 |
|
