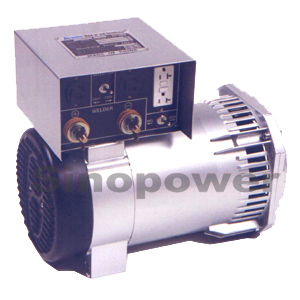

  Item# GBWa SERIES








  TECHNICAL DATA



                                                                                     Type Item

                        GBWa-L1

GBWa-L2

Generating

Working State

(AC)

Frequency (HZ)

50

60

50

60

Rated power (KW)

2.8

3.3

3

3.5

Rated voltage (AC) (V)

230

120/240

230

120/240

Rated current (AC) (A)

12.2

27.5/13.7

13

29/14.5

Power factor (cos ?)

1

Welding

Working State (DC)

No-load welding voltage (DC) (V)

65

Rated welding current (DC) (A)

160

180

Welding operating voltage (DC) (V)

25-32

Welding load persistence rate

40%

Welding current adjustment scope (A)

50-180

60-200

Rated speed (r/min)

3000

3600

3000

3600

Electrical Performance

Insulation class F

CONT. S1

Steady-state voltage regulate rate (cos?=1)  4%

Generator unload voltage wave rate when welding-current is maximum 2.7%

Generator load voltage wave rate when welder is working 2.2%

Power of generator when welder is working

1.5kw-1.8kw
