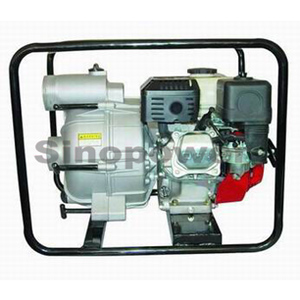

Model

TP-80HL

PUMP

Mode

80TP

Outlet/Inlet dia.mm (inch.)

80(3inch)

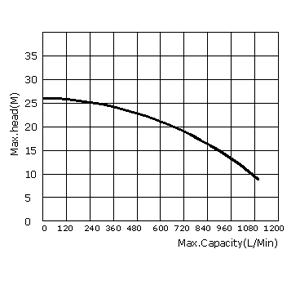

Max. Capacity (l/min)

1300

Total. Head (m)

26

Suction Head (m)

8

ENGINE

Model

168F-2

Type

4-stroke, single cylinder gasoline engine

Displacement (ml)

196

Max.output (hp/rpm)

6.5hp/3600rpm

Start mode

Recoil and hand-operated

Fuel tank capacity (L)

3.6

Fuel continuous time (hr)

2.5

Unit

Dimensions (LxWxH)(mm)

550x440x450

Dry weight (kg)

38
