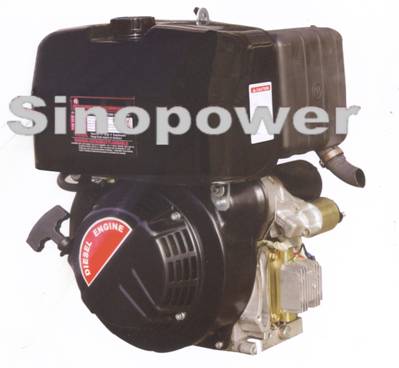

  Item# F500




















Standard Specification

Model

F500

Engine Type

Single cylinder,4-stroke,air-cooled,

direct injection ,diesel engine

Bore¡ÁStroke (MM)

87¡Á85

Displacement (ML)

505

Engine Speed (RPM)

3000/3600

Compression Ratio

19:1

Rated Output Power [KW (HP) / RPM]

7.4 (10) / 3000   8.1 (11) / 3600

Fuel

0 # or-10 # light diesel oil

Fuel Tank Volume [L (GAL.) ]

5.5 (1.21)

Lubrication Oil Volume [L (GAL.) ]

1.65 (0.36)

Overall Dimension (L X W X H) (MM)

385 X 435 X 492

Lube Brand

SAE10W30 (adove CC grade)
