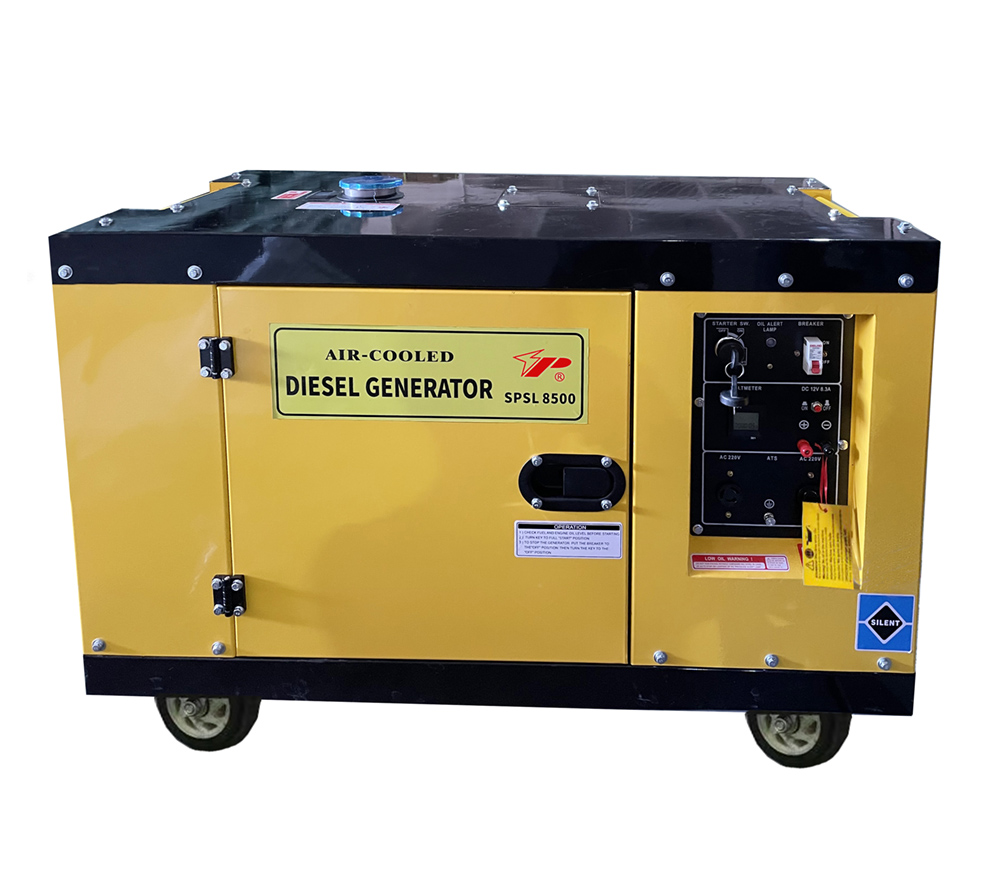

SILENT TYPE DIESEL GENERATING SET

Standard Specification

Generator Model	SPSL8500
Type	Brush, Self-excitation,2 Poles,Single Phase
Voltage Regulate	Automatic Voltage Reguactor (AVR)
Voltage (V)	120;220;240;120/240
Frequency	60Hz / 3600Rpm	50Hz / 3000Rpm
Max. AC Output	8.3KW	8.0KW
Rated AC Output	7.5KW	7.0KW
Power Factor	1.0
Diesel Engine Model	192FBE
Displacement	498cc
Fuel Tank Capacity	14.5L
Continuous Operating	6.5 Hours
Oil Capactity	1.65L
Starting System	Electric
Noise Level(7m)	72dBA
Dimension	990 x 560 x 760 mm
Net / Gross Weight	180 / 188 KGS
