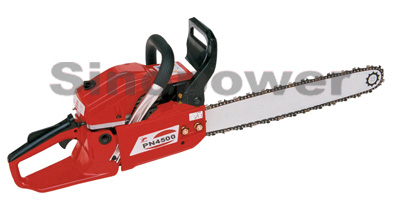

CHAINSAW  MODEL£º

4500

ENGINE MODE

1E43F

ENGINE TYPE

SINGLE CYLINDER¡¢2-STROKE,FORCED AIR COOLING

BORE X STROKE

43mmx31mm

DISPLACEMENT

45CC

COMPRESSION RATION

6.1:1

RATED POWER

1.7 kw /7000 rpm

MAX. TORQUE

2.0 N.m /5500 rpm

GASOLINE AND OIL MIXED RATIO

25:1

Chain OIL

Specialoil for two-cycle engine

IGNITION

C.D.I

STARTING SYSTEM

RECOIL STATER

Fuel Tank Capacity

 550ml

Engine Oil Tank Capacity

CHAINSAW DIMENSION

480mmx260mmx300mm

G.W/N.W

7.7/6.5kg

CHAIN

Oregon®/Carlton®

GUIDE BAR SIZE

16''/18''/20''

PITCH

0.325IN.

GAUGE

0.058IN.
